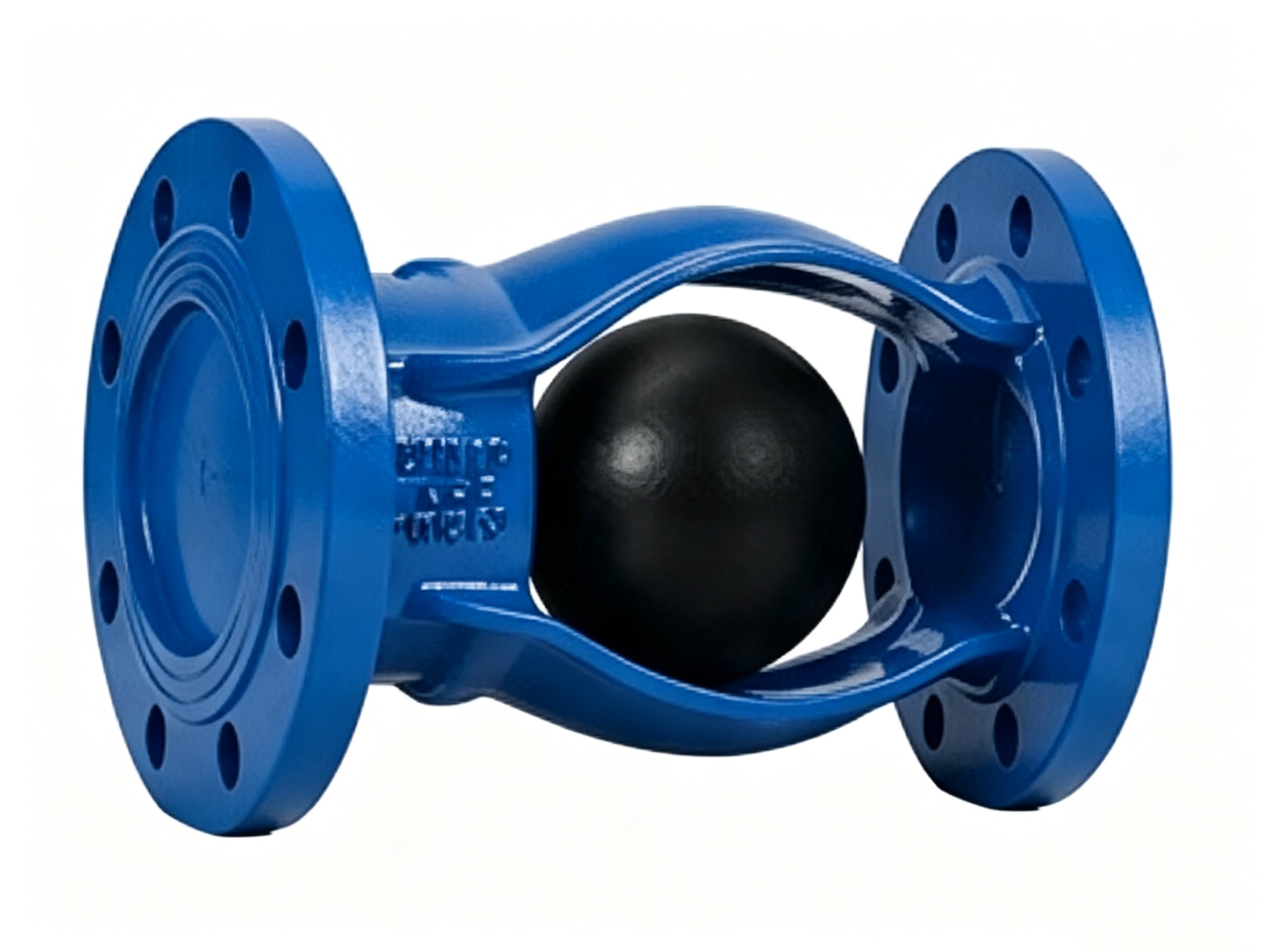

FLANGED BALL CHECK VALVE (NO COVER)

Standards Compliance

Face to Face:DIN3202 F6

Flange Standard:EN1092-2

Temperature:0~80��

Design Features

A. Compact Structure: Short face-to-face design saves installation space and reduces pipeline weight.

B. Low Pressure Loss: Full-bore flow path minimizes flow resistance and improves system efficiency.

C. Reliable Backflow Prevention: Rubber-coated ball and resilient seat provide tight sealing to prevent reverse flow and water hammer.

D. Flexible Installation: Suitable for both horizontal and vertical pipeline installation.

E. Long Service Life: NBR or EPDM coated steel ball offers excellent wear resistance and corrosion protection.

F. Leak-Free Body Design: Monolithic no-cover construction eliminates cover leakage risks and reduces maintenance.

G. Wide Range of Applications: Suitable for water supply, wastewater treatment, pumping stations, marine systems, and industrial cooling water services.

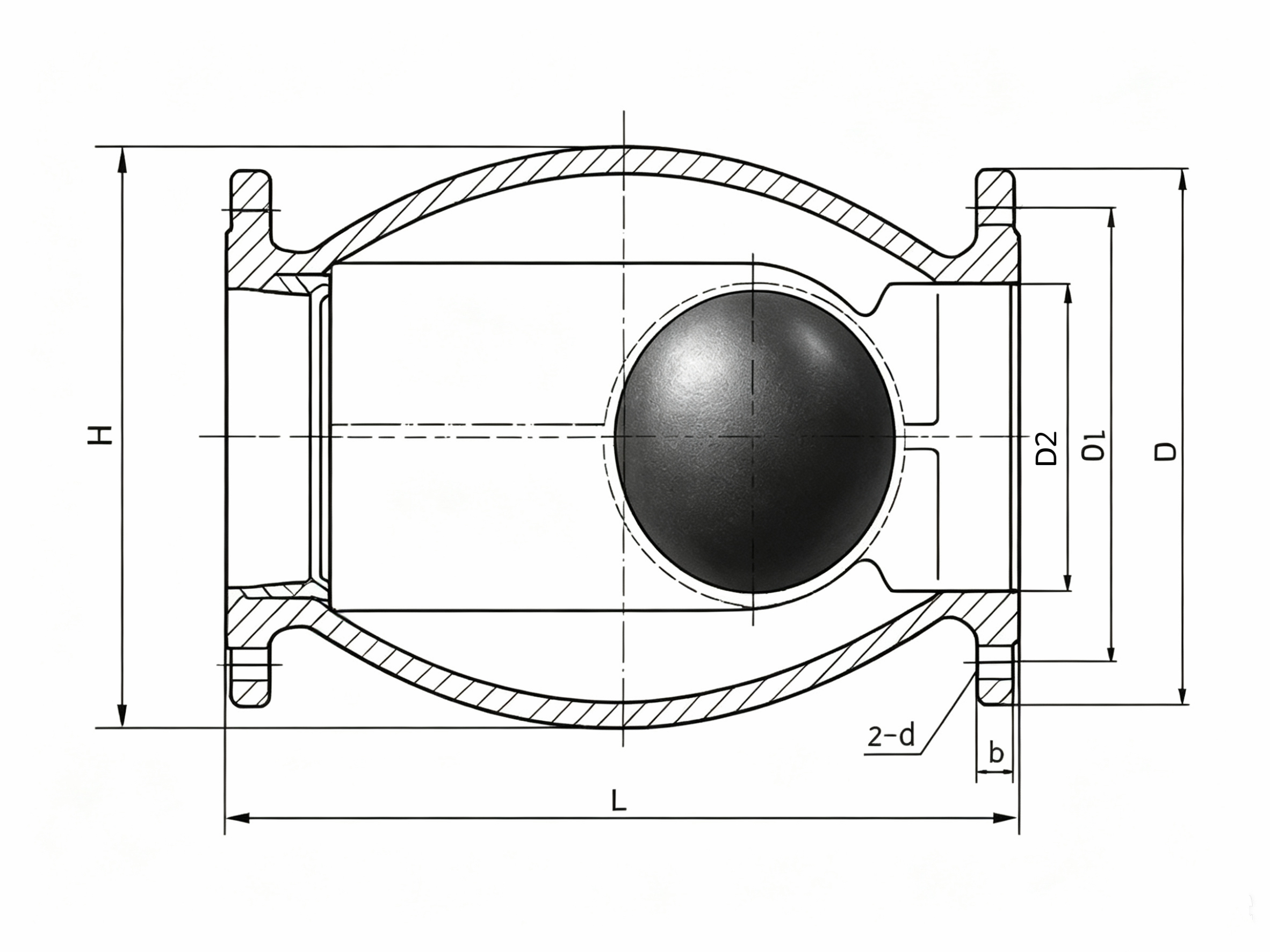

Main Connection Dimension and Outline Dimension (PN16)
unit:mm

DN	L	D	D1	D2	z-d	b	H
50	200	165	125	99	4-18	19	100
65	240	185	145	118	4-18	19	125
80	260	200	160	132	8-18	19	136
100	300	220	180	156	8-18	19	185
125	350	250	210	184	8-18	19	196
150	400	285	240	211	8-22	19	265
200	500	340	295	266	8-22	20	340
250	600	405	355	319	12-22	22	420
300	700	460	410	370	12-22	24	480

Standard Material Specifications

Part Name	Standard Material	Optional Materials
Body	Ductile Iron GGG50	WCB, CF8, CF8M
Ball Core	Carbon Steel	Stainless Steel 304, Stainless Steel 316
Ball Coating	NBR	EPDM, Viton (FKM)
Seat	NBR	EPDM, Viton (FKM)

Applicable media: water, sewage, seawater, weakly corrosive media, etc.
